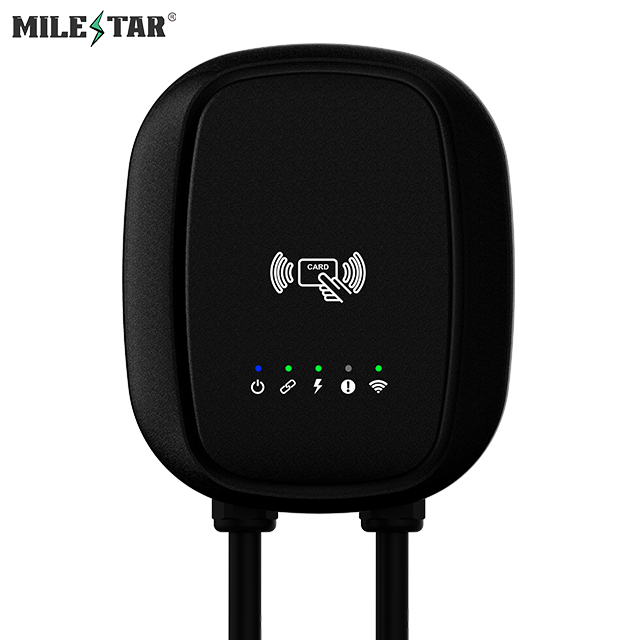

MSEVC48-N1
Milestar/ODM
| Quantity: | |
|---|---|
Electrical Parameter | 32A Max | 40A Max | 48A Max |
Single phase input: 208-240VAC 50-60Hz | |||
7.6kW at 240VAC | 9.6kW at 240VAC | 11.5kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance | ||
Input Cord | Hardwired | ||
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) | ||
IP | NEMA Enclosure Type 4: Waterproof, dust-tight | ||
IK | IK10 | ||
Operating Temperature | -30℃/+50℃ | ||
Dimension | Main Enclosure: 12.3in x 10.2in x 4.1in ( 313mm x 260mm x 105mm ) | ||
Connectivity | Bluetooth / Wi-Fi / APP | ||
Optional | Color Customization 4G Module Power Balance EMS | ||
Standards | NEC625, UL2594, UL 2231, OCPP1.6J, ISO15118, CTEP Compliance | ||
Certification | ETL, FCC, Energy Star Compliance | ||
Electrical Parameter | 32A Max | 40A Max | 48A Max |
Single phase input: 208-240VAC 50-60Hz | |||
7.6kW at 240VAC | 9.6kW at 240VAC | 11.5kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance | ||
Input Cord | Hardwired | ||
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) | ||
IP | NEMA Enclosure Type 4: Waterproof, dust-tight | ||
IK | IK10 | ||
Operating Temperature | -30℃/+50℃ | ||
Dimension | Main Enclosure: 12.3in x 10.2in x 4.1in ( 313mm x 260mm x 105mm ) | ||
Connectivity | Bluetooth / Wi-Fi / APP | ||
Optional | Color Customization 4G Module Power Balance EMS | ||
Standards | NEC625, UL2594, UL 2231, OCPP1.6J, ISO15118, CTEP Compliance | ||
Certification | ETL, FCC, Energy Star Compliance | ||
