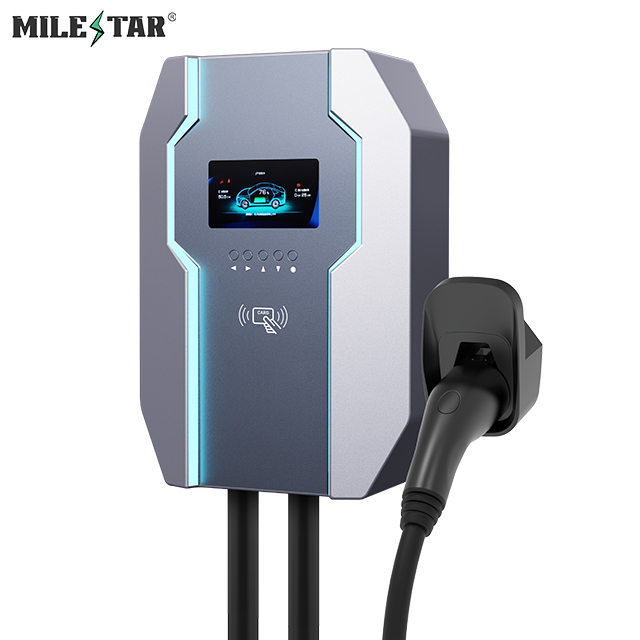

MSEVC80-N4
Milestar/ODM
| Quantity: | |
|---|---|
Electrical Parameter | 80A Max |
Single phase input: 208-240VAC 50-60Hz | |
19.2kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance |
Input Cord | Hardwired |
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) |
IP | NEMA Enclosure Type 4: Waterproof, dust-tight |
IK | IK08 |
Operating Temperature | -30℃/+50℃ |
Dimension | Main Enclosure: 496mm x 340mm x 128mm |
Connectivity | Bluetooth / Wi-Fi / OCPP1.6J/ RFID |
Optional | Color Customization 4G Module ISO15118 POS Power Balance EMS |
Standards | NEC625, UL2594, UL 2231, OCPP1.6J, CTEP Compliance |
Certification | ETL, FCC, Energy Star Compliance |
Electrical Parameter | 80A Max |
Single phase input: 208-240VAC 50-60Hz | |
19.2kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance |
Input Cord | Hardwired |
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) |
IP | NEMA Enclosure Type 4: Waterproof, dust-tight |
IK | IK08 |
Operating Temperature | -30℃/+50℃ |
Dimension | Main Enclosure: 496mm x 340mm x 128mm |
Connectivity | Bluetooth / Wi-Fi / OCPP1.6J/ RFID |
Optional | Color Customization 4G Module ISO15118 POS Power Balance EMS |
Standards | NEC625, UL2594, UL 2231, OCPP1.6J, CTEP Compliance |
Certification | ETL, FCC, Energy Star Compliance |
