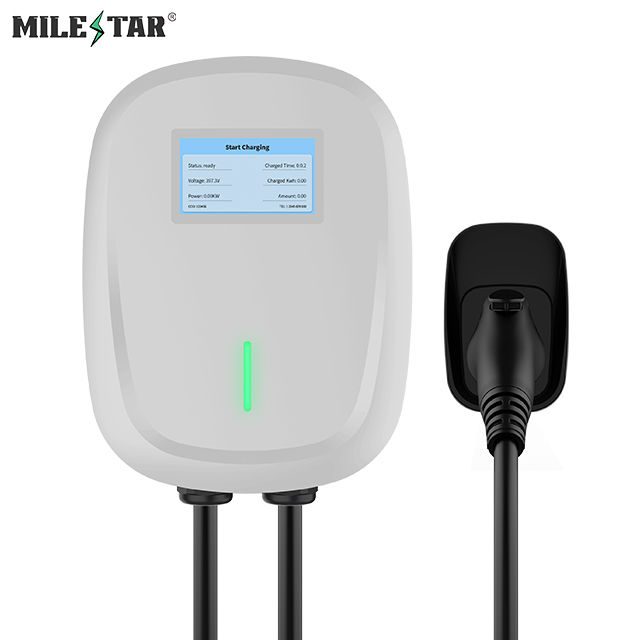

MSEVR48-N3
Milestar/ODM
| Quantity: | |
|---|---|
Electrical Parameter | 32A Max | 40A Max | 48A Max | 80A Max |
Single phase input: 208-240VAC 50-60Hz | ||||
7.6kW at 240VAC | 9.6kW at 240VAC | 11.5kW at 240VAC | 19.2kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance | |||
Input Cord | NEMA 14-50 or NEMA 6-50 Electrical Plug | Hardwired | ||
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) | |||
IP | NEMA Enclosure Type 4: Waterproof, dust-tight | |||
IK | IK08 | |||
Operating Temperature | -30℃/+50℃ | |||
Dimension | Main Enclosure: 326mm x 247mm x 97mm | |||
Protocol | Bluetooth / Wi-Fi / APP | |||
Optional | Color Customization RFID Power Balance EMS | |||
Standards | NEC625, UL2594, UL 2231, ISO15118 Compliance | |||
Certification | ETL, FCC, Energy Star Compliance | |||
Electrical Parameter | 32A Max | 40A Max | 48A Max | 80A Max |
Single phase input: 208-240VAC 50-60Hz | ||||
7.6kW at 240VAC | 9.6kW at 240VAC | 11.5kW at 240VAC | 19.2kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance | |||
Input Cord | NEMA 14-50 or NEMA 6-50 Electrical Plug | Hardwired | ||
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) | |||
IP | NEMA Enclosure Type 4: Waterproof, dust-tight | |||
IK | IK08 | |||
Operating Temperature | -30℃/+50℃ | |||
Dimension | Main Enclosure: 326mm x 247mm x 97mm | |||
Protocol | Bluetooth / Wi-Fi / APP | |||
Optional | Color Customization RFID Power Balance EMS | |||
Standards | NEC625, UL2594, UL 2231, ISO15118 Compliance | |||
Certification | ETL, FCC, Energy Star Compliance | |||
