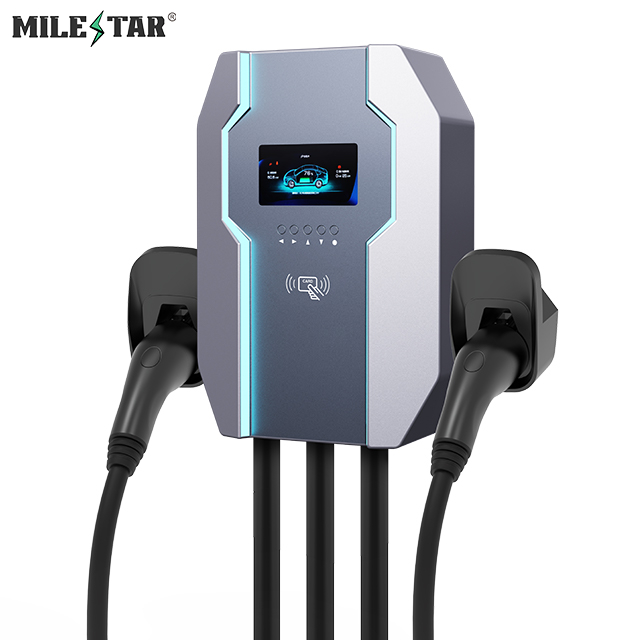

MSEVC132-E2
Milestar/ODM
| Quantity: | |
|---|---|
Electrical Parameter | 32A Max ( Dual-Port) |
Single phase input: 230VAC 50-60Hz | |
7.4kW x 2 at 230VAC | |
Connector Type | Type 2 IEC62196-2 Standard Compliance |
Input Cord | Hardwired: 2.62FT/0.8m |
Output Cable | 16.4FT/5.0m cable (26.2FT/8.0m optional) |
IP | IP65 |
IK | IK08 |
Operating Temperature | -30℃/+50℃ |
Dimension | Main Enclosure: 496mm x 340mm x 128mm |
Connectivity | Bluetooth / Wi-Fi / OCPP 1.6J / RFID |
Optional | 4G Module Color Customization POS |
Standards | IEC 61851-1, IEC61851-21-2, IEC62196-2, OCPP 1.6J compliance * Capable upgrade to OCPP 2.0J |
Certification | CE, UKCA, SAA Compliance |
