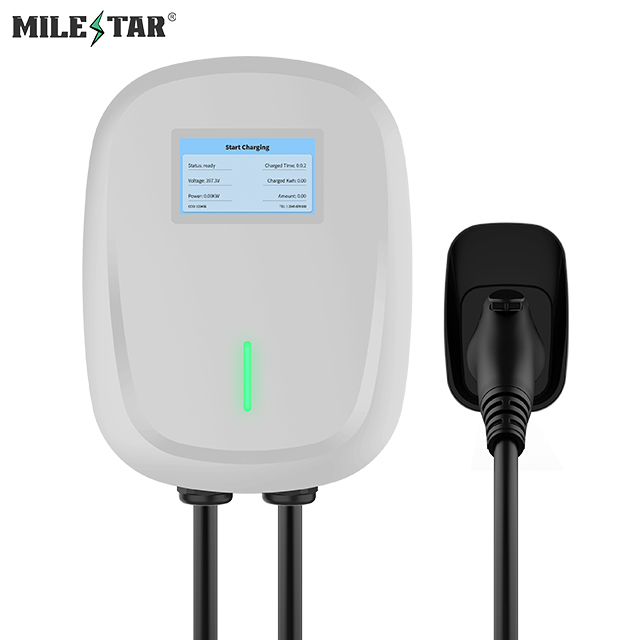

MSEVR132-E1
Milestar
| Quantity: | |
|---|---|
Electrical Parameter | 32A Max | 16A Max | 32A Max |
Single phase input: 230VAC 50-60Hz | Three phases input: 3 x 230VAC 50-60Hz | ||
7.4kW at 230VAC | 11kW at 3 x 230VAC | 22kW at 3 x 230VAC | |
Connector Type | Type 2 | ||
Input Cord | Hardwired | ||
Output Cable | 16.4FT/5.0m cable (26.2FT/8.0m optional | ||
IP | IP65 | ||
IK | IK08 | ||
Operating Temperature | -30℃/+50℃ | ||
Dimension | Main Enclosure: 247mm x 326mm x97mm | ||
Connectivity | Bluetooth / Wi-Fi / APP | ||
Optional | Color Customization Socket RFID | ||
Standards | IEC 61851-1, IEC61851-21-2 compliance | ||
Certification | CE, UKCA, SAA Listed | ||
Electrical Parameter | 32A Max | 16A Max | 32A Max |
Single phase input: 230VAC 50-60Hz | Three phases input: 3 x 230VAC 50-60Hz | ||
7.4kW at 230VAC | 11kW at 3 x 230VAC | 22kW at 3 x 230VAC | |
Connector Type | Type 2 | ||
Input Cord | Hardwired | ||
Output Cable | 16.4FT/5.0m cable (26.2FT/8.0m optional | ||
IP | IP65 | ||
IK | IK08 | ||
Operating Temperature | -30℃/+50℃ | ||
Dimension | Main Enclosure: 247mm x 326mm x97mm | ||
Connectivity | Bluetooth / Wi-Fi / APP | ||
Optional | Color Customization Socket RFID | ||
Standards | IEC 61851-1, IEC61851-21-2 compliance | ||
Certification | CE, UKCA, SAA Listed | ||
