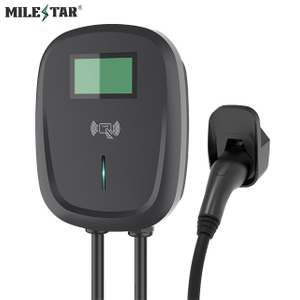

MSBCAC01-EK
MILESTAR
| Quantity: | |
|---|---|
Electrical Parameter | 16A Max | 32A Max | 16A Max | 32A Max |
Single phase input: 230VAC 50-60Hz | Three phase input: 400VAC 50-60Hz | |||
3.5kW | 7kW | 11kW | 22kW | |
Connector Type | Type 2 | |||
Input Cord | Hardwired | |||
Output Cable | 3.5m/5m/7m | |||
IP | IP65 | |||
IK | IK08 | |||
Operating Temperature | -30℃/+50℃ | |||
Dimension | 368mm x 256.5mm x 130mm | |||
Connectivity | Bluetooth / Wi-Fi / 4G Module / RFID / Ethernet | |||
Optional | Color Customization APP | |||
Standards | IEC 61851-1, IEC61851-21-2 compliance | |||
Certification | CE, UKCA, SAA Compliance | |||
Electrical Parameter | 16A Max | 32A Max | 16A Max | 32A Max |
Single phase input: 230VAC 50-60Hz | Three phase input: 400VAC 50-60Hz | |||
3.5kW | 7kW | 11kW | 22kW | |
Connector Type | Type 2 | |||
Input Cord | Hardwired | |||
Output Cable | 3.5m/5m/7m | |||
IP | IP65 | |||
IK | IK08 | |||
Operating Temperature | -30℃/+50℃ | |||
Dimension | 368mm x 256.5mm x 130mm | |||
Connectivity | Bluetooth / Wi-Fi / 4G Module / RFID / Ethernet | |||
Optional | Color Customization APP | |||
Standards | IEC 61851-1, IEC61851-21-2 compliance | |||
Certification | CE, UKCA, SAA Compliance | |||
