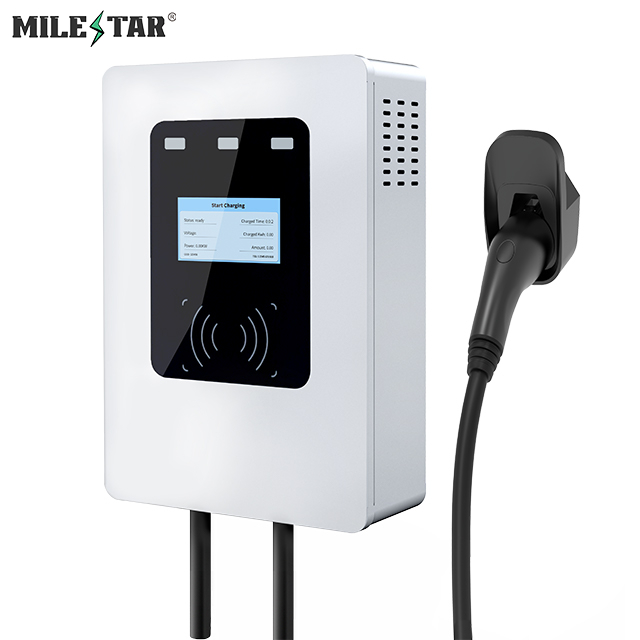

MSEVC40-N6
Milestar/ODM
| Quantity: | |
|---|---|
Input Voltage | Three phase 277-305VAC |
Input Operating Frequency | 60Hz |
Input Power Factor | ≥0.99(Rated voltage input, about 50% load) |
Output Power | 0-40kW |
Output Voltage | 100-1000V |
Max Output Current | 133.3A |
Efficiency(Full Load) | ≥95.5% |
Operating Temperature | -30℃/+50℃ |
Operating Humidity | 20~95RH%: No condensation |
Cooling Method | Forced air cooling |
Storage Temperature | -40℃/+85℃ |
Storage Humidity | 5~95RH%: 25RH%; No condensation |
Dimension | 750mm x 560mm x 190mm |
Charge Port | 16FT(5m) |
Weight | 150LBs(68kg) |
Standards | NEC625, UL2231, UL2202, OCPP1.6J, CTEP compliance |
Certification | ETL, FCC, Energy Star compliance |
Input Voltage | Three phase 277-305VAC |
Input Operating Frequency | 60Hz |
Input Power Factor | ≥0.99(Rated voltage input, about 50% load) |
Output Power | 0-40kW |
Output Voltage | 100-1000V |
Max Output Current | 133.3A |
Efficiency(Full Load) | ≥95.5% |
Operating Temperature | -30℃/+50℃ |
Operating Humidity | 20~95RH%: No condensation |
Cooling Method | Forced air cooling |
Storage Temperature | -40℃/+85℃ |
Storage Humidity | 5~95RH%: 25RH%; No condensation |
Dimension | 750mm x 560mm x 190mm |
Charge Port | 16FT(5m) |
Weight | 150LBs(68kg) |
Standards | NEC625, UL2231, UL2202, OCPP1.6J, CTEP compliance |
Certification | ETL, FCC, Energy Star compliance |
