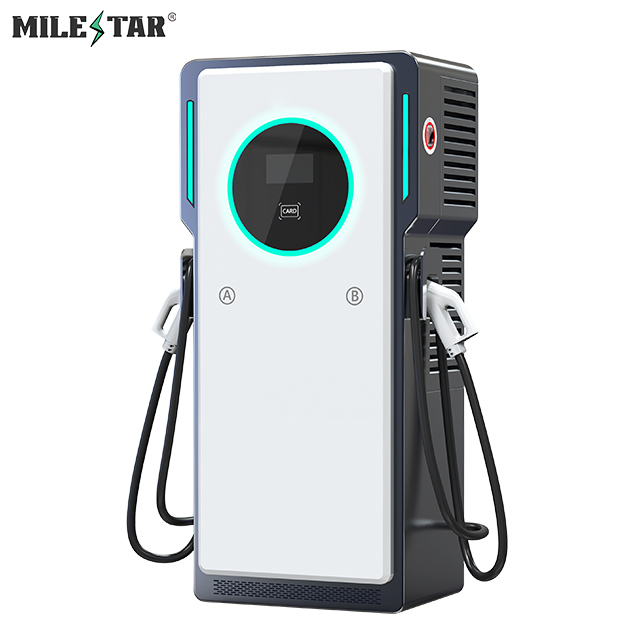

MSEVC3160-E1
Milestar/ODM
| Quantity: | |
|---|---|
General Parameter | Power | 60kW DC | 120kW DC | 160kW DC |
Dimension | 800mm x 600mm x 1750mm | |||
Input | AC Supply System | 3-phase with 5 wires | ||
Input Voltage | 400V AC (±10%) 45-65Hz | |||
Enviroment Parameter | Environment Temperature | -20℃/+50℃ | ||
Humidity | 5%-95% | |||
Mechanical Parameter | Mechnical Stability | IEC61851-1 | ||
IP Level | IP54 | |||
Cooling Method | Forced air cooling | |||
Output | Port Output(60kW) | Single port 150A Max at 200-750A | ||
Port Output(120kw&160kW) | Single port 250A Max at 200-750A | |||
Port Compatibility | DC Port complies to IEC62196-3 CCS-2 | |||
Efficiency | ≥95% (Rated output power) | |||
Power Factor | ≥0.99 ( Full Load ) | |||
Communication between EVSE and CMS | OCPP1.6J Protocol | |||
User Interface and Display | Measurement | Grid-responsive metering is performed based on the unit consumption of each vehicle | ||
