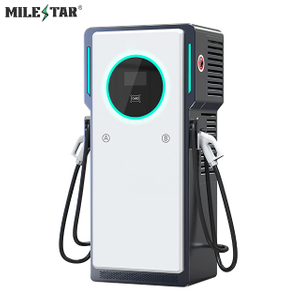

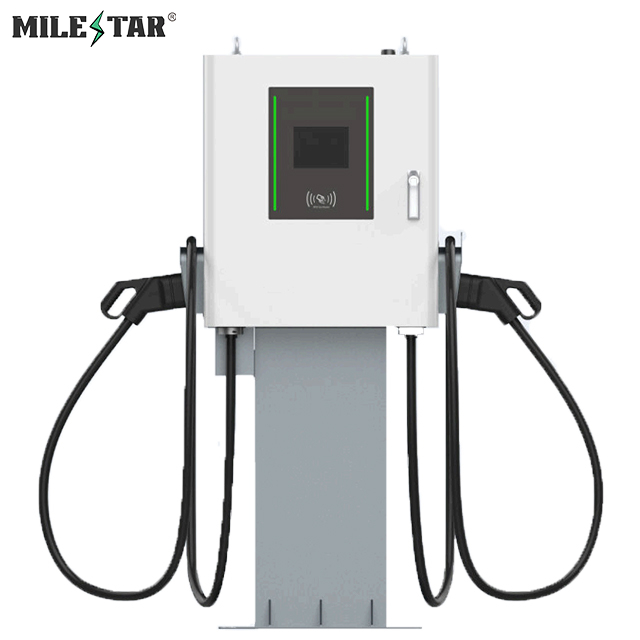

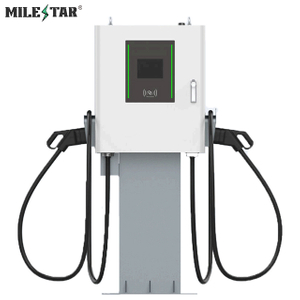

MSBCDC-01
Milestar/ODM
| Quantity: | |
|---|---|
General Parameter | Power | 30KW | 60KW |
Dimension | 690*357*1688mm | 690*357*1688mm | |
Input | AC Supply System | 3P + N + PE | 3P + N + PE |
Input Voltage | AC 400V±15% | AC 400V±15% | |
Enviroment Parameter | Environment Temperature | -30～+50℃ | -30～+50℃ |
Humidity | 5%～95% | 5%～95% | |
Mechanical Parameter | IP Level | IP54 | IP54 |
Cable | 5M | 5M | |
Cooling Method | Air-cooled | Air-cooled | |
Output | Output voltage range (VDC) | 150V-1000V | 150V-1000V |
Output current (A) | 0～100A | 0～200A | |
Efficiency | ≥94% | ≥94% | |
Power Factor | ≥0.99 | ≥0.99 | |
Communication between EVSE and CMS | PLC | PLC | |
Connectivity | Network Connection | Ethernet | Ethernet |
Comminication protocol to the backend | OCPP1.6J | OCPP1.6J | |
Comminication protocol to the EV | IEC 61851-24/DIN 70121/ISO 15118 | IEC 61851-24/DIN 70121/ISO 15118 | |
Certification | IEC/EN 61851, IEC/EN 62196 | IEC/EN 61851, IEC/EN 62196 | |
User Interface and Display | Measurement | Grid-responsive metering is performed based on the unit consumption of each vehicle | |
