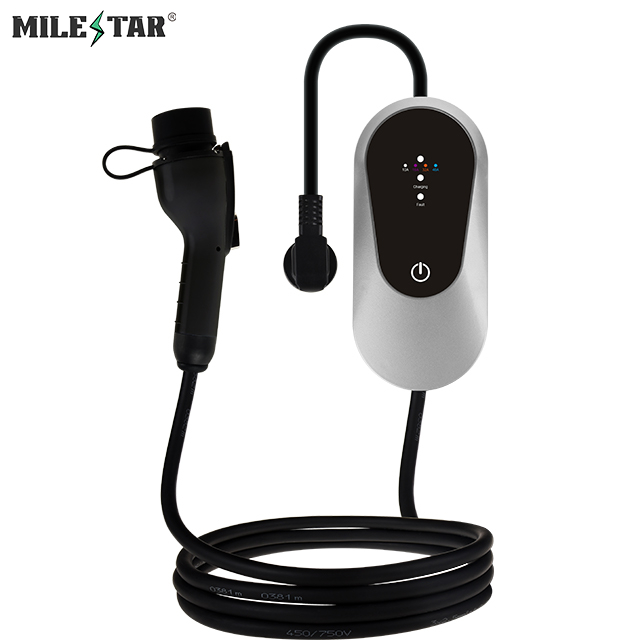

MSEVR40-N5
Milestar/ODM
| Quantity: | |
|---|---|
Electrical Parameter | 10A Max | 16A Max | 32A Max | 40A Max |
Single phase input: 208-240VAC 50-60Hz | ||||
2.4kW at 240VAC | 3.8kW at 240VAC | 7.6kW at 240VAC | 9.6kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance | |||
Input Cord | NEMA 5-15P, NEMA 14-50 or NEMA 6-50PElectrical Plug | |||
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) | |||
IP | NEMA Enclosure Type 4 | |||
IK | IK08 | |||
Operating Temperature | -30℃/+50℃ | |||
Dimension | Main Enclosure: 247mm x 118mm x 66mm | |||
Connectivity | Bluetooth / Wi-Fi / Tuya for Options | |||
Optional | Color Customization | |||
Standards | NEC625, UL2594, UL 2231 Compliance | |||
Certification | ETL, FCC, Energy Star Compliance | |||
