MSTSCW1V02ER
Milestar/ODM
| Quantity: | |
|---|---|
Material | PA6 nylon reinforced 30%, 304 stainless steel standard screws, hot rolled thin steel plate bracket |
Dimension | 410mm x 360mm x 220mm |
Weight | 3.3kgs(Exclude cable) |

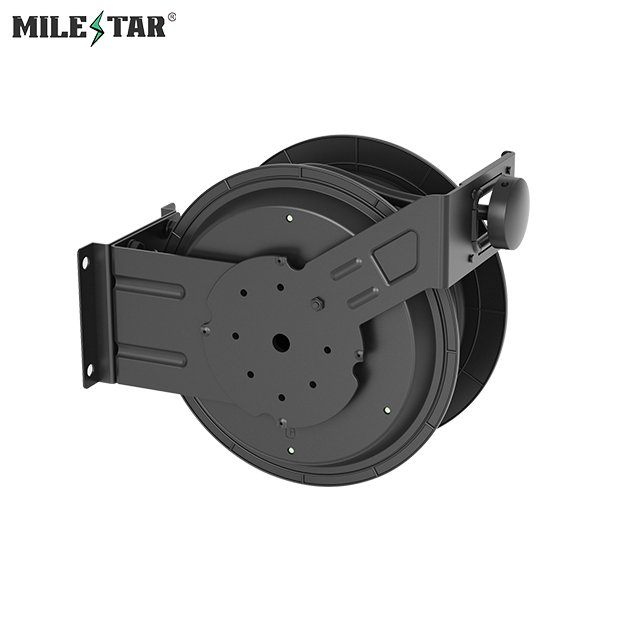

Cable Winding Length | Based on the length of the charging cable |
Pulling and Rolling Strength | ≥1kg |
Operating Temperature | -30℃/+50℃ |
Lifetime | ≥10,000 times (Slow pull natural recovery) |
Safety | Flame-retardant nylon PA66 flame-retardant reinforced 30% nulon fire-resistant material |
Output Cable | Connects to existing EVSE. Type 1 SAE J1772 cord, AC Level 2, 32-48A rated(7.6-11.5kW) |

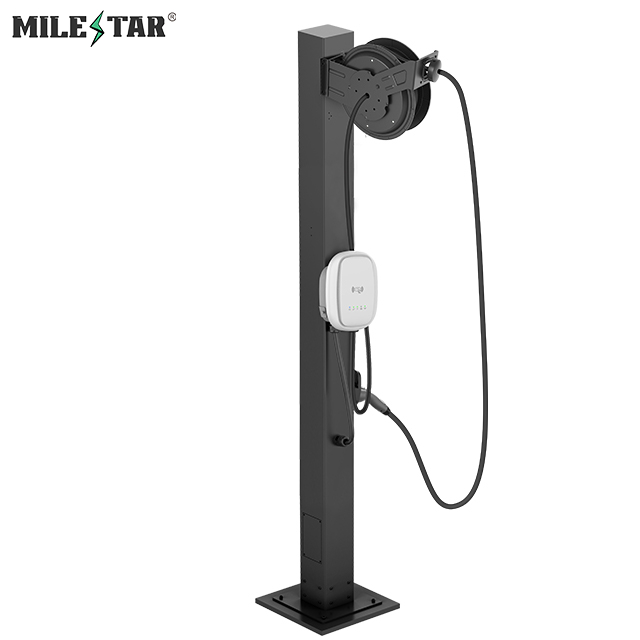

Cable Management System is only available in 7FT pedestal |
Material | PA6 nylon reinforced 30%, 304 stainless steel standard screws, hot rolled thin steel plate bracket |
Dimension | 410mm x 360mm x 220mm |
Weight | 3.3kgs(Exclude cable) |
Cable Winding Length | Based on the length of the charging cable |
Pulling and Rolling Strength | ≥1kg |
Operating Temperature | -30℃/+50℃ |
Lifetime | ≥10,000 times (Slow pull natural recovery) |
Safety | Flame-retardant nylon PA66 flame-retardant reinforced 30% nulon fire-resistant material |
Output Cable | Connects to existing EVSE. Type 1 SAE J1772 cord, AC Level 2, 32-48A rated(7.6-11.5kW) |
Cable Management System is only available in 7FT pedestal |
