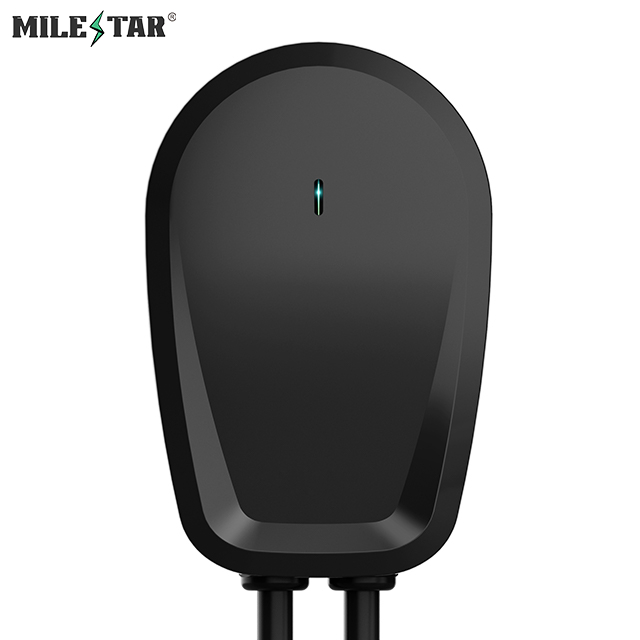

MSEVR40-N2
Milestar/ODM
| Quantity: | |
|---|---|
Electrical Parameter | 32A Max | 40A Max |
Single phase input: 208-240VAC 50-60Hz | ||
7.6kW at 240VAC | 9.6kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance | |
Input Cord | NEMA 14-50, NEMA 6-50 or Hardwired | |
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) | |
IP | NEMA Enclosure Type 4 | |
IK | IK08 | |
Operating Temperature | -30℃/+50℃ | |
Dimension | Main Enclosure: 275mm x 178mm x 95mm | |
Protocol | Bluetooth / Wi-Fi / Tuya for Options | |
Optional | Color Customization | |
Standards | NEC625, UL2594, UL 2231 Compliance | |
Certification | ETL, FCC, Energy Star Compliance | |
Electrical Parameter | 32A Max | 40A Max |
Single phase input: 208-240VAC 50-60Hz | ||
7.6kW at 240VAC | 9.6kW at 240VAC | |
Connector Type | SAE J1772, NACS standard compliance | |
Input Cord | NEMA 14-50, NEMA 6-50 or Hardwired | |
Output Cable | 18FT/5.5m cable (25FT/7.5m optional) | |
IP | NEMA Enclosure Type 4 | |
IK | IK08 | |
Operating Temperature | -30℃/+50℃ | |
Dimension | Main Enclosure: 275mm x 178mm x 95mm | |
Protocol | Bluetooth / Wi-Fi / Tuya for Options | |
Optional | Color Customization | |
Standards | NEC625, UL2594, UL 2231 Compliance | |
Certification | ETL, FCC, Energy Star Compliance | |
